    Thickness 0.4 - 0.8mm Metal Roof Roll Forming Machine About 12 - 18m Per Min

    Ask Lasest Price
    Brand Name : GMC
    Model Number : GWC35-125-750
    Certification : CE and Patent Certificate
    Price : Negotiation
    Delivery Time : 70 days
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5-500 set a year
    • Product Details
    • Company Profile

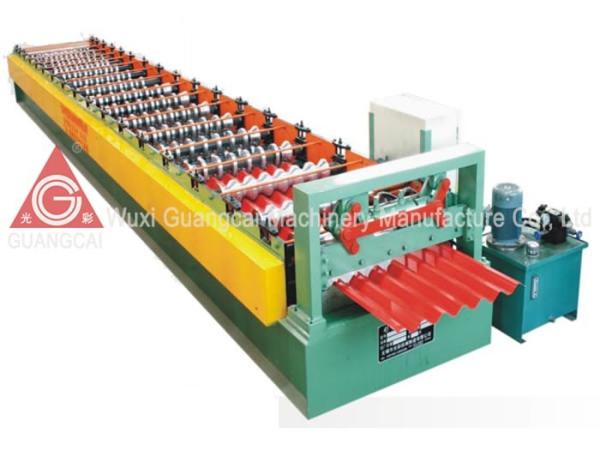

    Thickness 0.4 - 0.8mm Metal Roof Roll Forming Machine About 12 - 18m Per Min

    Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine


    Product Description

    The finished product of roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.


    No.Factory Prices Making Building Material wall panel metal roofing Corrugated Tile Roll Forming Machine For Sale
    1Suitable materialPPGI/Aluminium sheet/galvanized sheet/various sheet plates
    2Thickness of sheet0.4-0.8mm
    3width925mm
    4Effective width762mm
    5Material of main frame350H steel
    6Diameter of Soild shaft70mm, high grade 45# steel
    7Roller

    High grade 45# steel, quenched and tempered treatment,

    hard chrome plated 0.05-0.07mm

    8Thickness of middle plate16mm, 45# steel plate
    9Forming station18 rows
    10Drive typeBy chain(1.0 inch), link bearing model 6210
    11Power of main motor5.5 kw, Lichao, Shanghai, with reducer
    12Sidewall connection bar25mm, zinc plated
    13Forming speedAbout 12-18m/min
    14Hydraulic pump station4.0 kw, 40# hydraulic oil
    15PLCDELTA(TAIWAN)/Mitsubishi
    16Material of razor bladesCr 12, quenching 58-62
    17Frequency converter

    It has the advantage of slowing down before cutting, to ensure the

    length accuracy ±1mm, far better than industrial standard ±3mm.

    18SwitchCHNT
    19Frequency changerSAJ
    Product Overviews

    Feeding raw material system of Factory Prices Making Building Material wall panel metal roofing Corrugated Tile Roll Forming Machine For Sale

    Hand shake wheels in both side can guarantee the raw material in one straight line, and hand cutting blade can help you to change coil color or save material easily !

    Quality Thickness 0.4 - 0.8mm Metal Roof Roll Forming Machine About 12 - 18m Per Min for sale
