    Steel Cold Roll Forming Machine / Sheet Metal Roof Tile Roll Forming Machine

    Ask Lasest Price
    Brand Name : GMC
    Model Number : GWC35-125-750
    Certification : CE and Patent Certificate
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5-500 set a year
    Delivery Time : 70 days
    • Product Details
    • Company Profile

    Steel Cold Roll Forming Machine / Sheet Metal Roof Tile Roll Forming Machine

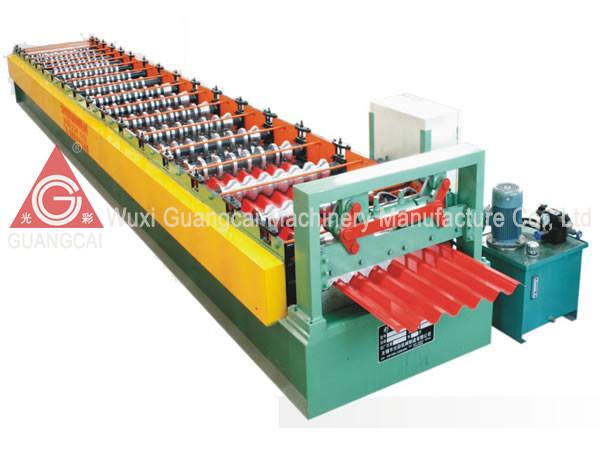

    GWC35-125-750 Roof Panel Roll Forming Machine


    Our GWC35-125-750 roof panel roll forming machine is able to make classic roof panel whose appearance is elegant, artistic and smooth. The corrugations are uniformly distributed, and rib height reaches up to 35mm while the pitch is relatively small. So, the panel is of high strength. Moreover, the roof panel allows reliable overlapping, and it shows excellent resistance to water, typhoon and sabotage.


    Advantages



    Besides the common features, this product also possesses other outstanding properties.
    1. Our roof panel roll forming machine can add one pitch and becomes GWC35-125-875 type. The feeding width is changed to 1200mm accordingly.

    2. This machine could work with bending machine to manufacture girderless arch roof.


    Processing Flow



    Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading


    Composition


    1. 5T passive decoiler
    2. Shape forming machine
    3. Hydraulic shear

    4. Hydraulic station
    5. PLC control cabinet
    6. Run out table


    Specifications


    Model GWC35-125-750/875Note
    Applicable materialColor plate, galvanized plate, galvalume plate and aluminum plateThis machine is customizable upon each customer's requirements and the characteristics of processed material.
    Feeding width1000/1200mm
    Processing thickness0.3-0.8mm
    Roller material45# coated with hard chrome
    Man motor power / hydraulic station power5.5kW / 3kWThese parameters can be set according to the required production capacity.
    Rolling passes16
    Forming speed5-15 meters/minute
    Machine dimensions9.5×1.7×1.5m
    Machine weight6.5T


    Related Names
    Sheet Metal Forming Machine | Metal Roof Cladding Roll Former | Roofing Sheet Manufacturing Machine
